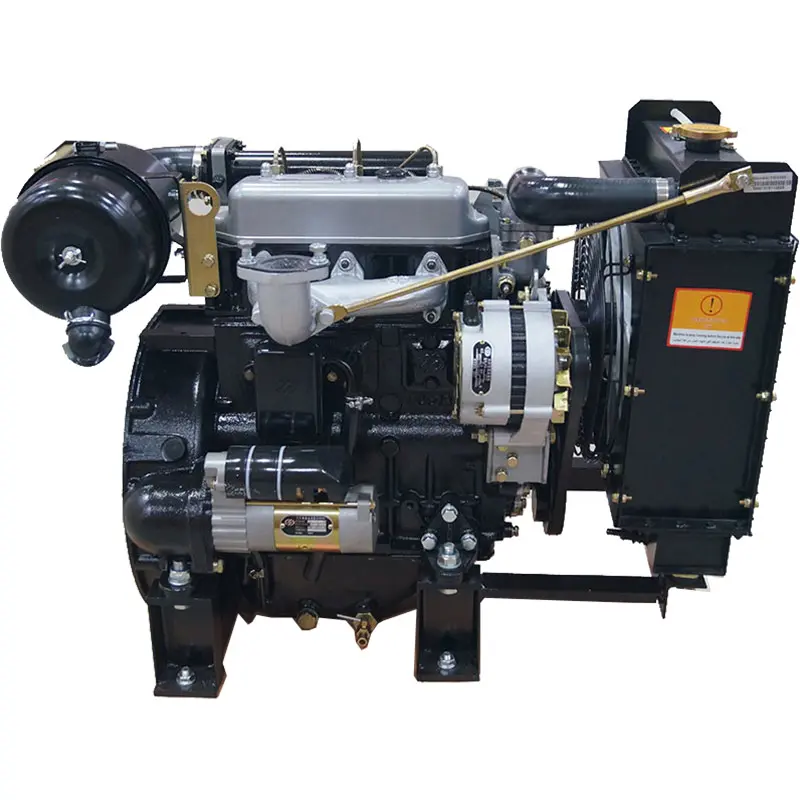

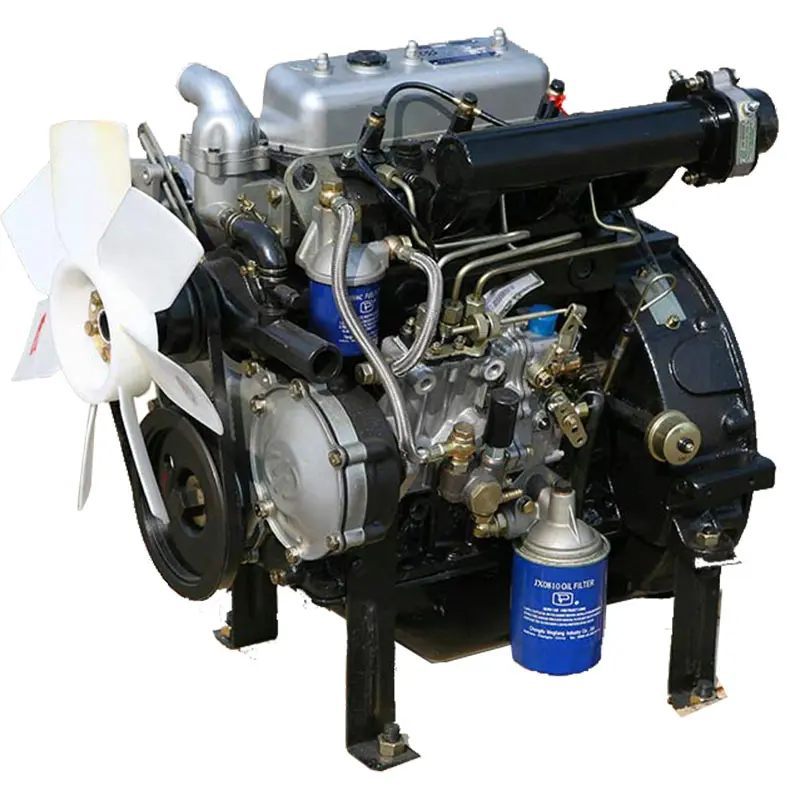

Power Generation Engines-11KW-YD385D
YANGDONG DIESEL ENGINES FOR GENERATOR
| Model | YD385D |
| Type | Vertical,water cooling, four stroke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 3 |
| Bore(mm) | 85 |
| Stoke(mm) | |
| Compression ratio | 18 |
| Total displacement(L) | 1.532 |
| Firing order | 1-3-2 |
| Rated Power (KW)/Speed(RPM) | 11/1500 13/1800 |
| Min.specific fuel consumption at full load (g/kW.h) | ≤255 |
| Intake Type | Natural Aspiration |
| Cooling methed | Forced watercooling |
| Starting methed | Electric |
| flywheel size | SAE7.5″ |
| Bell housing size | SAE4# |
| Net mass without radiator | 175 |
| Overall dimensions (L*W*H) (mm) without radiator | 587*474*615 |
🔧 2、 Regular maintenance (weekly/monthly/annual) Air system Clean or replace the air filter element every week (if the dust accumulation is marked in red, it needs to be replaced). Check the sealing of the intake pipeline to prevent air leakage and poor combustion. Key component replacement Oil filter: Replace within 20 hours for the first time, and replace every 200 hours thereafter. Fuel filter/oil: Check every 50 hours and replace every 200 hours. Coolant: Replace annually or after 500 hours of operation to prevent corrosion and scale buildup. Performance testing Conduct monthly load testing to verify the stability of the unit at full load operation. Annual comprehensive testing: including insulation resistance, protection device calibration, and automatic switching function testing.
