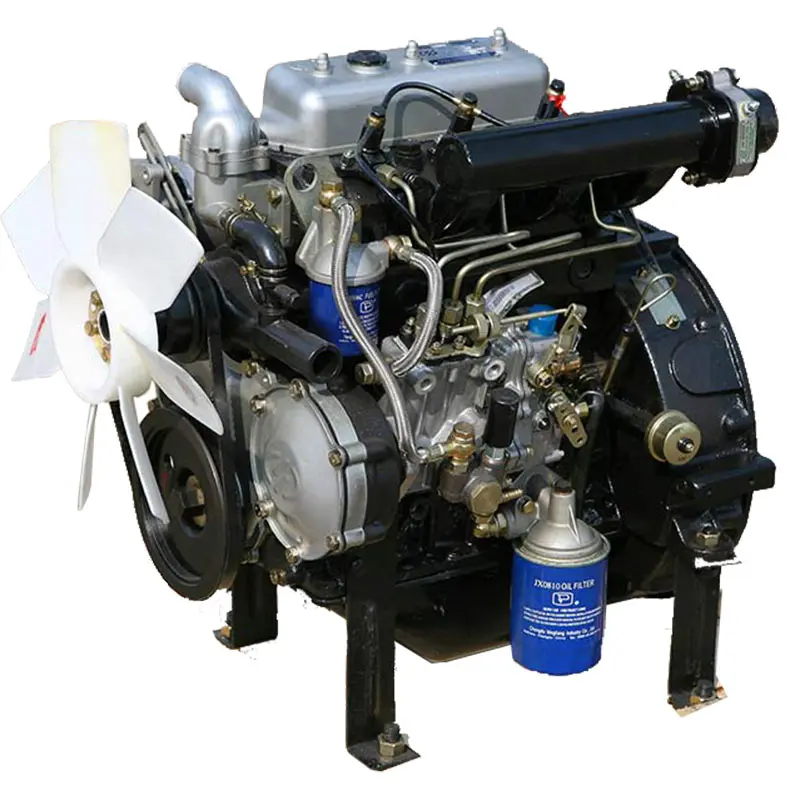

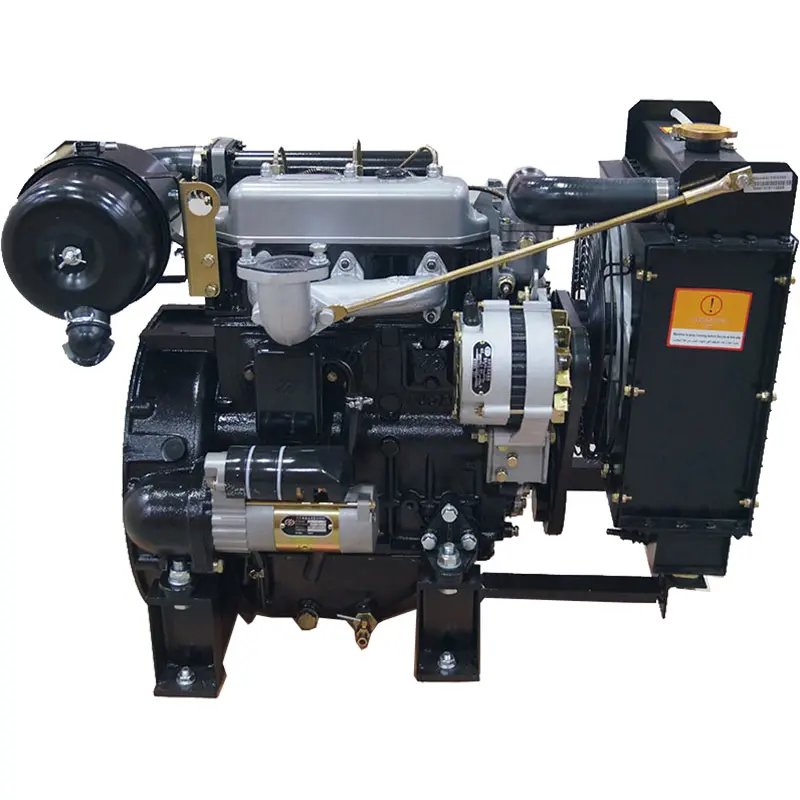

Power Generation Engines-10KW-YD380D
YANGDONG DIESEL ENGINES FOR GENERATOR
| Model | YD380D |
| Type | Vertical,water cooling, four stroke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 3 |
| Bore(mm) | 80 |
| Stoke(mm) | 90 |
| Compression ratio | 18 |
| Total displacement(L) | 1.357 |
| Firing order | 1-3-2 |
| Rated Power (KW)/Speed(RPM) | 10/1500 12/1800 |
| Min.specific fuel consumption at full load (g/kW.h) | ≤260 |
| Intake Type | Natural Aspiration |
| Cooling methed | Forced watercooling |
| Starting methed | Electric |
| flywheel size | SAE7.5″ |
| Bell housing size | SAE4# |
| Net mass without radiator | 170 |
| Overall dimensions (L*W*H) (mm) without radiator | 587*474*628 |
We always take technological innovation as the driving force and product excellence as the foundation of our existence. With years of professional accumulation in the industry, we have established a complete product research and development and quality control system to ensure that every solution combines safety and high performance. From concept design to finished product delivery, we implement multiple strict quality inspection processes to provide all-round guarantee for product quality.
